Huepar 16 Lines Self-Leveling Laser Level 4×360° Cross Line Laser with Receiver -LCD Screen, 4D Bluetooth Green Beam Tiling Floor Laser Tool, 360° Horizontal/Vertical Laser Kit -Remote Control S04-5RG

Price: $296.99
(as of Jun 17, 2024 15:42:18 UTC – Details)

Product Description

With advanced laser level technology, Huepar is committed itself to providing solutions for a wide variety of applications of greater accuracy and precision.

S04-5RG 4 x 360°Green Beam LCD Screen Floor Laser Level with Laser Detector Specifications:

Laser Class: Class 2 (IEC/EN60825-1/2014), <1mW power outputNumber of Lines: Two 360° horizontal floor laser lines & Two 360° Vertical laser linesScreen Type: LCD screen with backlightLaser Wavelength: 505-520nmHorizontal/Vertical Accuracy: ±1/9 inch at 33Ft.Leveling/Compensation Range: ±3.5°Working Distance (Line): 130Ft (100 LUX), 200Ft. with Huepar Receiver LR-5RG Included in the kitPower Source: 7.4V / 2600mAh Li-ion battery & 4×AA (LR6) batteriesOperating Time: with Li-ion Battery: 5 hours with all laser beams on; with AA Batteries: 0.5 hours with all laser beams onPackage: Hard Carry Case & IP Rating: IP54 dust-proof, waterproof and shockproof, reliable and toughMount Size: 1/4″-20

WARNING:

Avoid direct exposure of the laser beam to the eyes.

Lines Switching & Bluetooth Technology

Short press the “H” and “V” buttons on the keypad to switch the Horizontal and Vertical laser lines separately.The Bluetooth remote control / Huepar APP enables to select four 360° laser lines individually at a distance up to 98Ft.The laser line(s) can be temporarily turned OFF by the remote control/Huepar APP when need to leave for a while.In manual mode, when all laser lines are switched off, the laser tool will shut OFF automatically after about 5 minutes of inactivity.The laser tool can connect two Bluetooth devices simultaneously. It can connect two Bluetooth remote controls, or two smart phones(whether on Android or iOS), or one Bluetooth remote control and one smart phone at the same time.

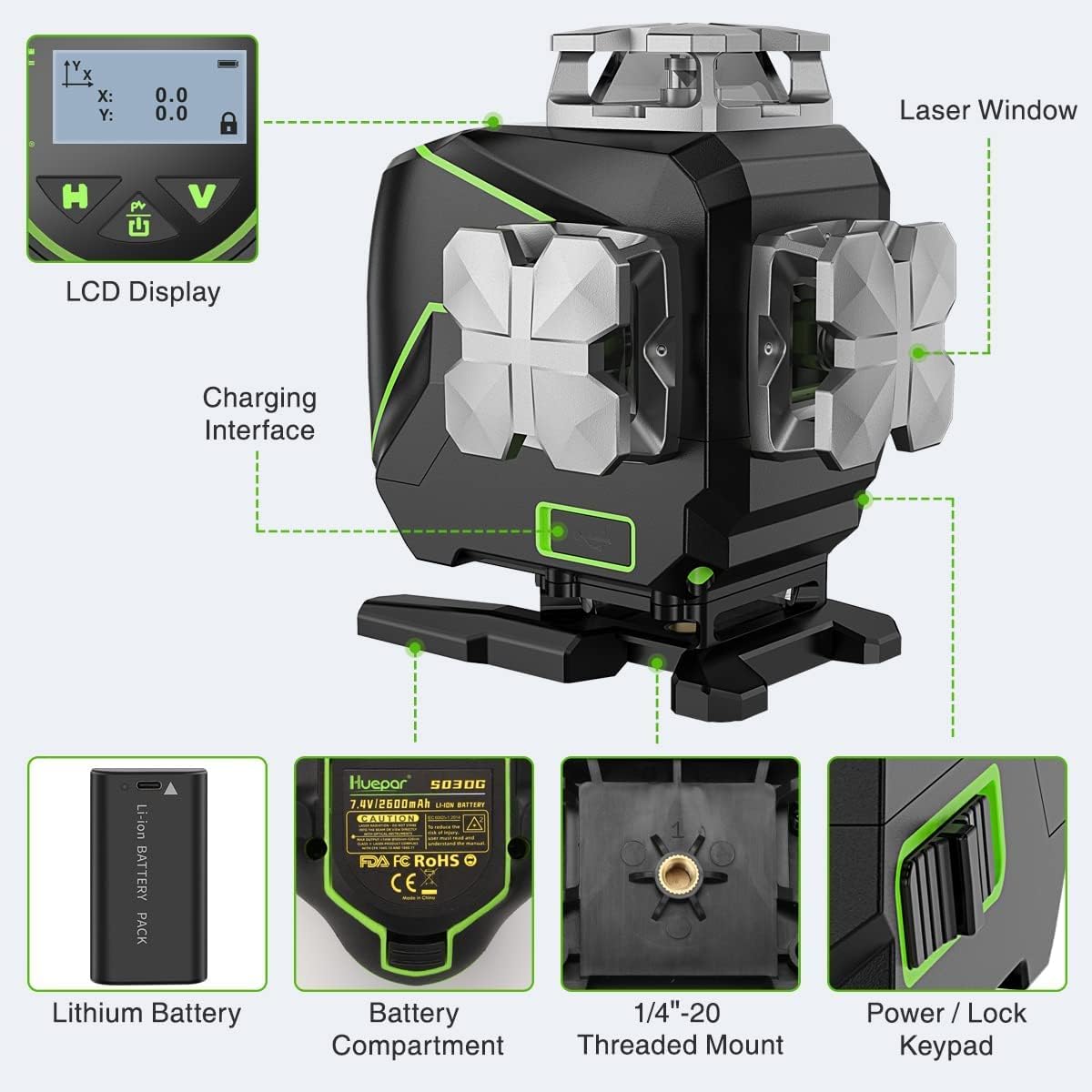

LCD Screen Display

Huepar S04CG laser level has LCD screen to easily get the status of the battery, angle, pendulum and pulse mode on the display.Icons on LCD screen: battery level, pendulum locked&unlocked status, X axis tilt angle, Y axis tilt angle, X/Y axis tilt direction, pulse mode.

Magnetic Bracket&Mounting Thread

Equipped with a magnetic pivoting bracket, the laser tool can be rotated at 360° randomly.The fine-tuning knobs on the bracket enable adjustment of the left and right position, front and back position within 2.16 in (5.5cm) , can also help adjust and lock the height within 3.74 in (9.5cm).The graduations in both Inch and Metric on the bracket make the adjustment much easier.The magnetic bracket offers 1/4″-20 and 5/8″-11 mounting threads to suit different tripod threads.The laser tool also has 1/4″-20 mounting thread to suit for standard tripods or pole mounts.

Pulse Mode

After power on, short press the power button to switch ON/OFF the pulse mode.When connecting with Huepar APP and the Bluetooth Remote Control, the pulse mode can be switched ON/OFF via APP and remote control.Pulse mode extends the working range up to 200Ft in brighter working conditions when using with Huepar Line Laser Receiver. The receiver is included in the package.It is compatible with Huepar LR-6RG / LR-5RG Laser Detector only.Note: Keep the pulse mode on when using with a receiver.

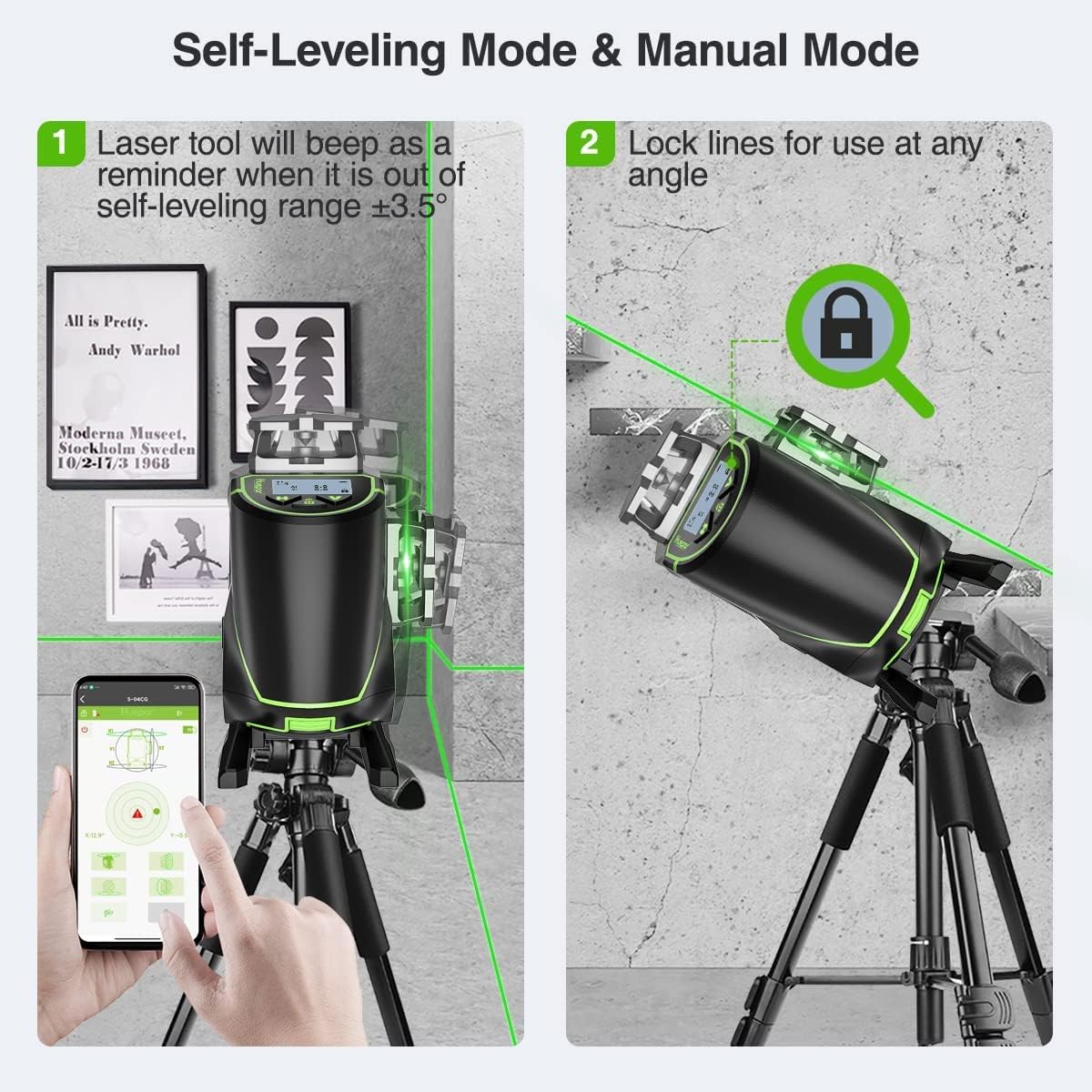

Self-leveling mode&Manual mode

Self-leveling mode:

Once the pendulum unlocked, the self-leveling mode is enabled. The laser beam will beep as well as the laser beam blink fast when the tool is out of self-leveling range ±3.5°.With Bluetooth Tech, the locked icon will be displayed on Huepar APP and LCD screen.

Manual mode:

When the pendulum is in the locked position, the laser tool can be placed for use at any angle.The laser beam will blink every 3-5 seconds to remind you it’s not self-leveling now.With Bluetooth Tech, the locked icon will be displayed on Huepar APP and LCD screen to remind user it is in manual mode now.

Triple Power Methods

This laser tool utilizes the included large capacity Li-ion battery which is compatible with Samsung SB-L110 battery.The Li-ion battery comes with type-c charging port that can be charged by laptop, power bank, car charger, etc.Huepar 360 laser level also comes with a holder for installing 4 AA batteries to use the tool.The 16 lines laser level can be used at the work site by plugged in directly when taking out the battery.

Durable Design&Hard Cary Case

Metal laser window design withstands tough worksite conditions. This laser tool is dustproof, shockproof and waterproof, making it more reliable to use.The Metal laser window cover is replaceable that can be removed and replaced with a screwdriver.The kit has a hard carry case bringing much more convenience to carry and store the laser tool.

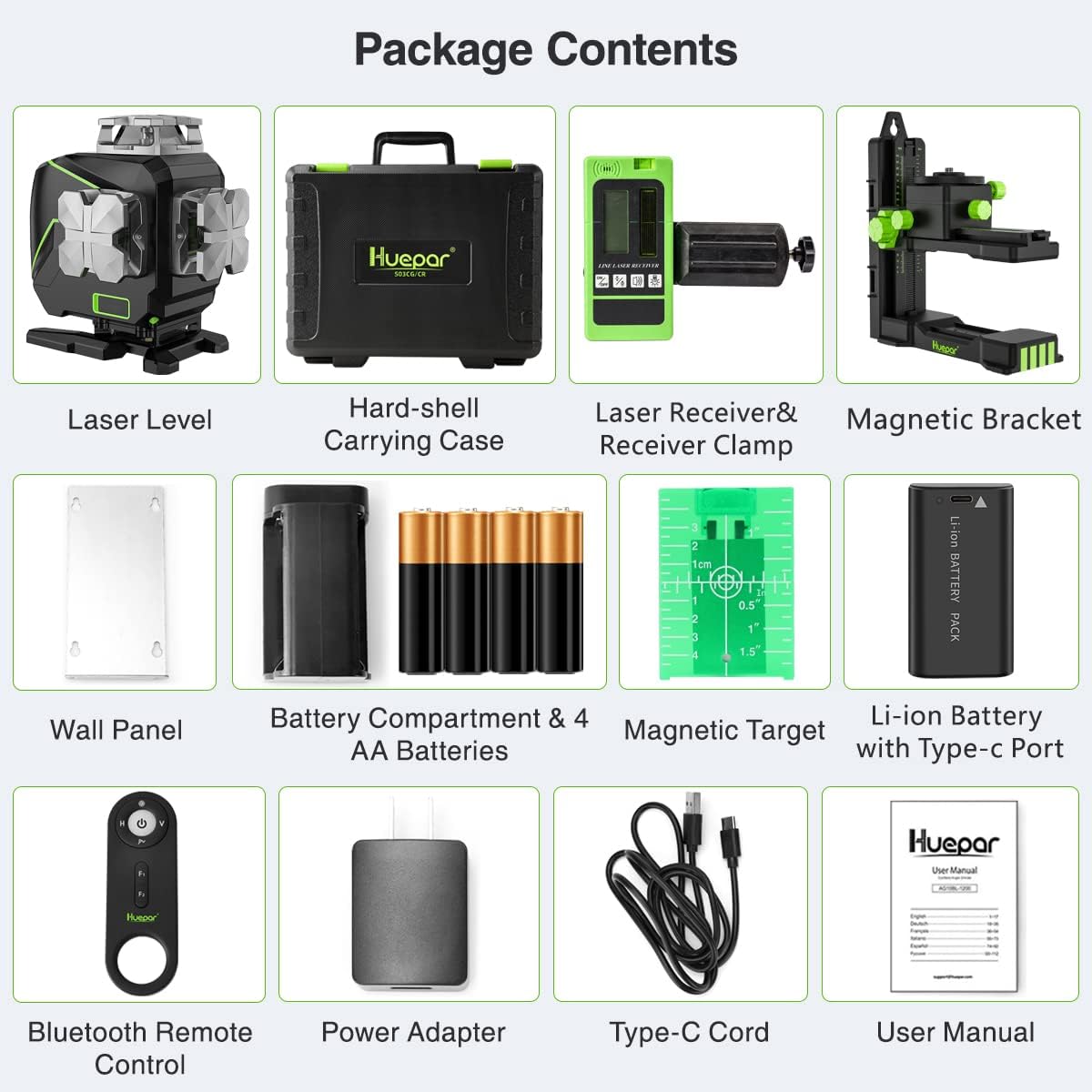

Package Contents

1 x 4D Green Tiling Laser Level with LCD screen S04CG1 x Huepar LR-5RG Digital Laser Detector & 1 x Heavy-duty Receiver Clamp1 x Bluetooth Remote Control1 x Rechargeable Li-ion Battery1 x Power Adapter& Type-C cord2 x AA Batteries for Receiver4 x AA (LR6) Batteries & 1 x AA Battery Holder1 x Magnetic Bracket & 1 x Steel Sheet1 x Laser Target Plate &1 x Hard Carry Case1 x Lase Level User Manual

【4 x 360° Line Lasers & Pulse Mode(Receiver Included)】This laser tool provides four 360 planes of laser light. The top 360° horizontal line can be used for ceiling installation. The 360° floor horizontal line is for tiling installation. Two 360° vertical lines cross at 90°angles makes user quickly visualize and finish square layout. Pulse mode extends laser range up to 200Ft. with Huepar Laser Receiver included in the kit. The laser uses bright Osram’s green laser unit that has higher stability.
【LCD Display & Bluetooth Tech】The laser level has LCD screen to easily get the status of the battery, angle, pendulum and pulse mode on the display. Bluetooth connectivity enables to control the setup of the laser from across the room with Huepar App on smart phone and remote control. The App and remote control can switch ON/OFF the laser lines and pulse mode, select the laser planes. Huepar App also provides out-of-level alarm. The laser tool can connect two Bluetooth devices simultaneously.
【Triple Power Methods & Type-C Charging Port】TRIPLE POWER METHODS & TYPE-C CHARGING PORT: This 360 laser tool adopted 7.4V / 2600mAh Li-ion battery (can be purchased easily at local market) for extended run-time, or with 4 AA alkaline batteries. Besides, this 4D laser level can be used at job site by plugged in when take out the battery. With Type-C charging port, the 16 lines laser level can also be charged by laptop, power bank, car charger, etc.
【Multifunctional Laser Tool】The four 360° laser planes can be selected individually by separate H and V button on the keypad. With smart pendulum, the laser tool self levels and indicates out-of-level condition while pendulum unlocked. The line laser will beep when out of self-leveling range ±3.5°. Once pendulum locked, it switches to manual mode to lock lines for use at any angle.
【Magnetic Bracket & Durable Design】Strong magnetic bracket allows for quick positioning to metal surfaces. And the 1/4″-20 & 5/8″-11 mounting threads on the bracket enable to mounted to different tripod threads. The laser tool also has a 1/4″-20 mount thread to suit a tripod or pole mount. IP54 water/dust resistance can withstand tough job site conditions. The kit has a hard carry case bringing much more convenience to carry and store the laser tool.
